Belmont "Astec" CDH-2AM CNC EDM

Hole Drilling Machine, New 1996

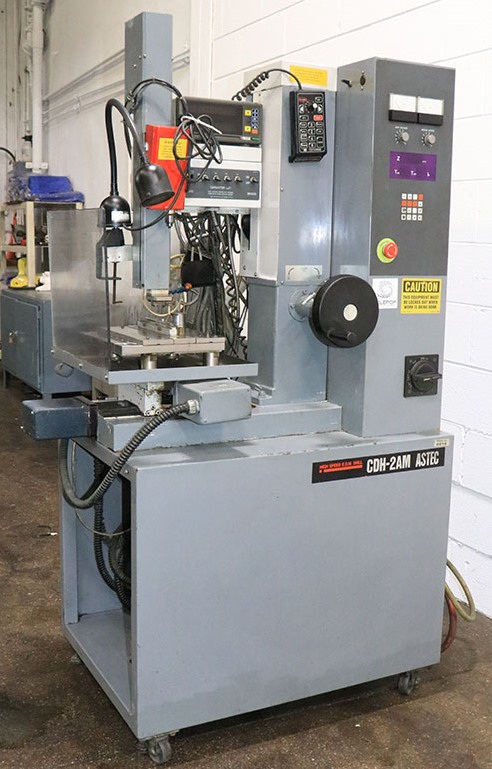

Belmont Astec CDH-2AMCNC EDM Hole Drilling Machine

Specifications:

Max. current………………………………………………….. 30 AMPS

Table size………………………………………………. 10.24" x 12.32"

Worktank inside dimensions…………………………….. 14.49" x 18.3"

Max. workpiece weight………………………………………….. 220 lb.

Longitudinal travel……………………………………………….... 7.87"

Cross travel………………………………………………………... 7.87"

Z-axis servo travel………………………………………………... 15.75"

Z-axis processing head up & down distance…………..............…... 9.65"

Work max. height………………………………………………….. 8.85"

Electrode diameters available…………………………….. 0.008" - 0.12"

Dimensions (approx.)....…………………………... 42"L x 48"W x 72"H

Weight (approx.)……………………………………………….. 1,750 lb.



Equipped with:

Belmont "AUTO Z" control

"C-axis" - DC motor for electrode rotational device

Toggle switch for C-axis direction

Toggle switches for capacitors

Toggle switch for a sensor

Z-axis is driven by a DC servo system

Independent volt & amp meters

"GAP ADJUST" & "SERVO SPEED" control knobs

Mitutoyo "KS Series" 2-axis (X & Y) DRO

High precision ball screws for axes movements

"SERVO II" CNC programmable drives & controller for

  both the longitudinal & cross axes

Pendant

Belmont water pump unit

Work light

Machine is wired for 3/60/220 volts, 3.5 KVA input


DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.

Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.


email for a quote.
