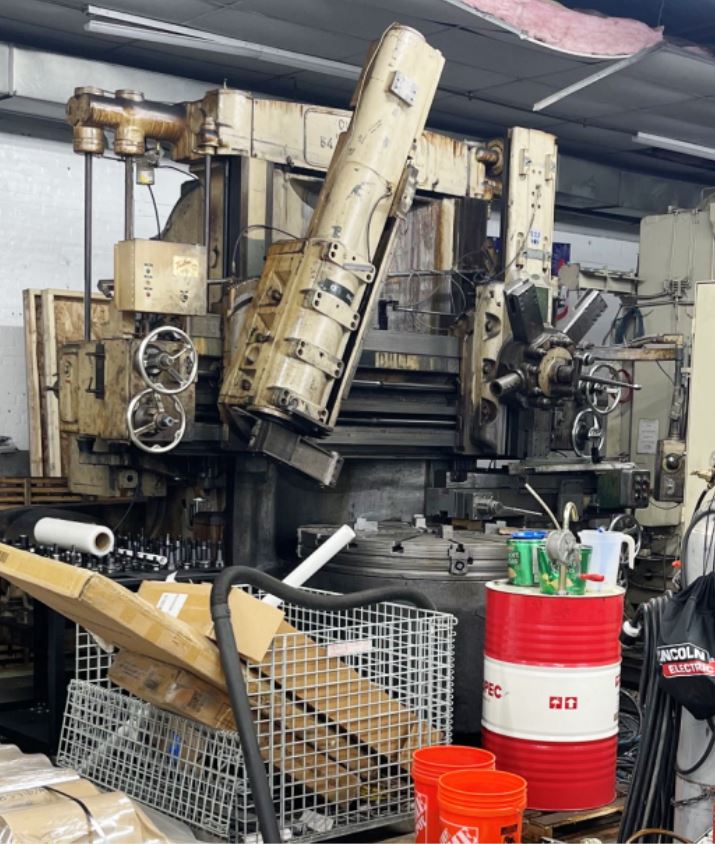

Bullard 54" Cutmaster Vertical Turret Lathe

Specifications:

Table diameter………………………………..…. 54"

Max. swing (side head above table top)............... 58"

Max. swing (side head below table top)................ 62"

Max. distance, table to rail.................................... 44"

Max. distance, table to turret face................. 55-1/4"

Turret head vertical travel............................... 30-3/8"

Turret head tool post holes............................... 2-3/4"

Ram head vertical travel................................. 30-1/2"

Max space table to underside of side head slide. 34-7/8"

Side head vertical travel.................................. 44-1/4"

Side head horizontal travel.................................... 27"

Table speeds (20)................................... 3.3 - 120 rpm

Feeds (16)........................................ 0.0026 - 0.500 ipr

Motor.............................................. 30hp/3/60/220/440

Dimensions (approx.)......... 124"W x 116"D x 131"H

Weight (approx.)........................................... 48,600 lb.

Equipped with:

54" 4-Jaw independent chuck

Swiveling 5-position turret head

Swiveling ram head

Side head

Coolant pan and piping
