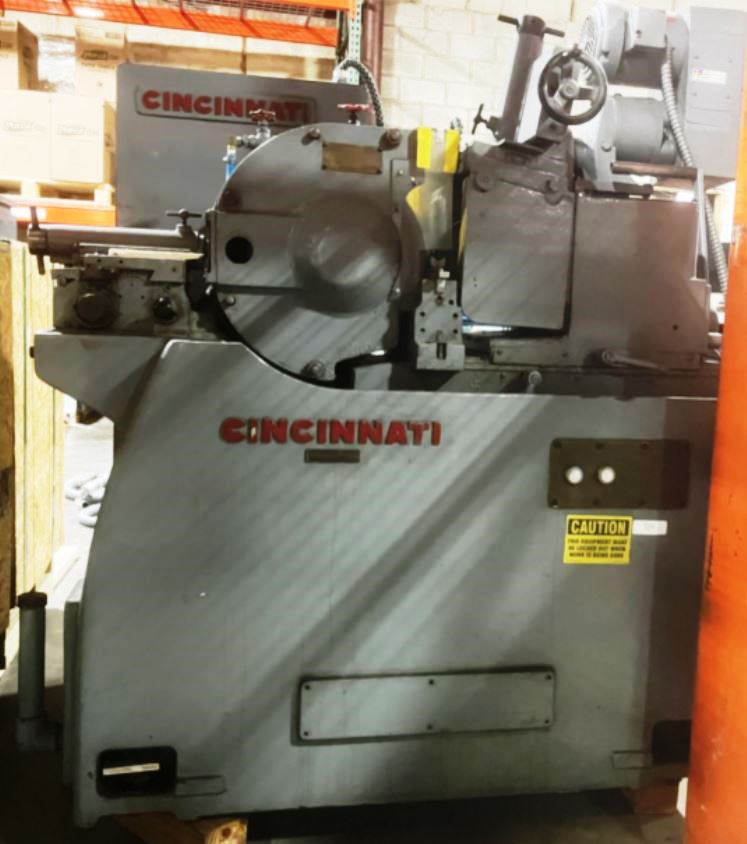

Cincinnati No.1 Centerless Grinder, New 1954

Specifications:

Capacity w/ std thrufeed & infeed work rests... 0 – 1-1/2"

Grinding wheel –

  Diameter……………………………... 12"min./16"max.

  Width………………………………………….............. 4"

  Hole.............................................................................. 10"

Regulating wheel

  Diameter………....................................…. 7"min./9"max.

  Width……………………………………...........… 4"max.

  Hole……………………………………...……… 4" diam.

  Recessed both sides……………….... 5-1/2" diam. x 5/8"

Grinding wheel motor............................................ 7-1/2 Hp

Regulating wheel motor………………………...… 1/2 Hp

Regulating wheel speed (infinitely variable).. 0 – 500 rpm

Electrics.................................................................. 3/60/208

Dimensions (approx.).............................. 63" x 61" x 50"H

Weight (approx.)..................................................... 4,560 lb.

Equipped with:

Manual straight grinding wheel dresser

Manual straight regulating wheel dresser

Through-feed work rest

Variable-speed regulating wheel
