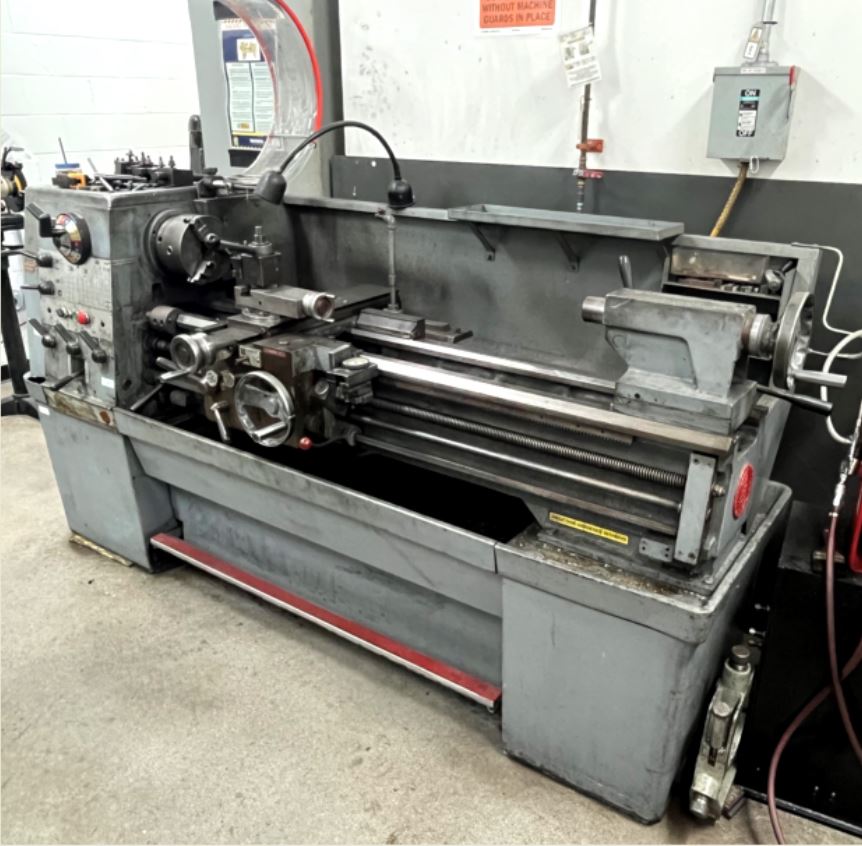

15" x 50" Clausing-Colchester Gap Bed Engine Lathe

Specifications:

Swing over bed.................................................. 15-1/4"

Swing over cross slide......................................... 9-1/2"

Distance between centers....................................... 50"

Hole thru spindle............................................... 2-3/16"

Spindle nose, camlock size................................. D1-6"

Spindle speeds (16)................................ 25 - 2000 rpm

Headstock & tailstock spindle taper................ #4 MT

Tailstock spindle travel....................................... 6-1/8"

Tailstock spindle diameter................................ 2-5/16"

Width of bed............................................................ 11"

Feeds:

    longitudinal (45).......................... 0.0015 - 0.040 ipr

    cross (45)................................... 0.00075 - 0.020 ipr

Threads:

    inch (45).................................................... 2 - 72 tpi

    metric (39)............................................ 0.2 - 14 mm

Motor....................................................... 7.5 Hp/3/60

Dimensions....................................... 96" x 38" x 52"

Weight (approx.)........................................... 3,500 lb.

Equipped with:

Quick-change gearbox w/ inch/metric feeds & threads

8" 3-jaw chuck

Aloris quick change toolpost and misc. holders

Induction hardened bedways

Carriage stop

Foot brake

Steady rest

Slide-out chip pan

Coolant system w/ full-length rear splash guard

Presently wired for 208v operation
