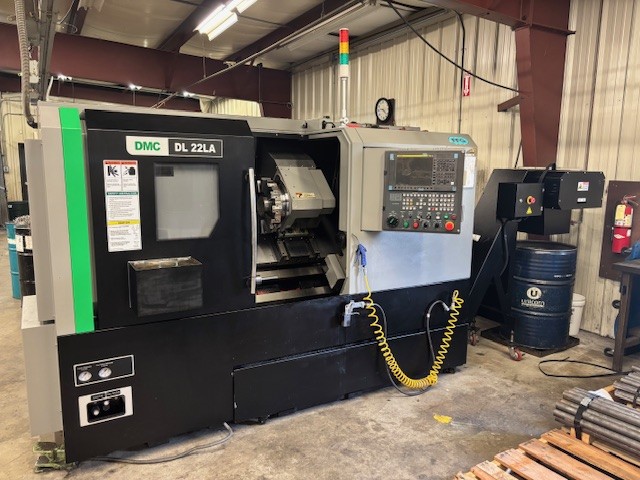

DMC DL22LA CNC Lathe, New 2022

Specifications:

Swing over bed………………...……….. 21.65"

Swing over cross slide………..……….. 14.17"

Max. turning length…………..……...... 21.26"

Max. turning diameter………..……....... 13.78"

Bar capacity……...…………..………...... 2.56"

Spindle nose………………..………...…. A2-6

Max. Spindle speed…………..….... 4,000 rpm

X-axis travel…………………..…….…… 8.27"

Z-axis travel…………………..….…….. 22.83"

Rapid traverse (X & Z)………..…...... 945 ipm

Tailstock quill taper………..……...….. #4 MT

Spindle motor (15min/Cont)......……. 20/15 Hp

Electrics……………...…..…. 3/60/220/30kVA

Number of controlled axes……..……….…. 2

Dimensions (approx.).. 117"L x 65"D x 75"H

Weight (approx.)………………..…… 9,700 lb.

Equipped with:

Fanuc 0i-TF PLUS CNC control w/ Manual Guide i

8" 3-Jaw power chuck

12-Station Servo turret

Box ways

Programmable tailstock

Programmable quill

Tool presetter

Bar feed interface

Coolant system

Chip conveyor

Parts catcher
