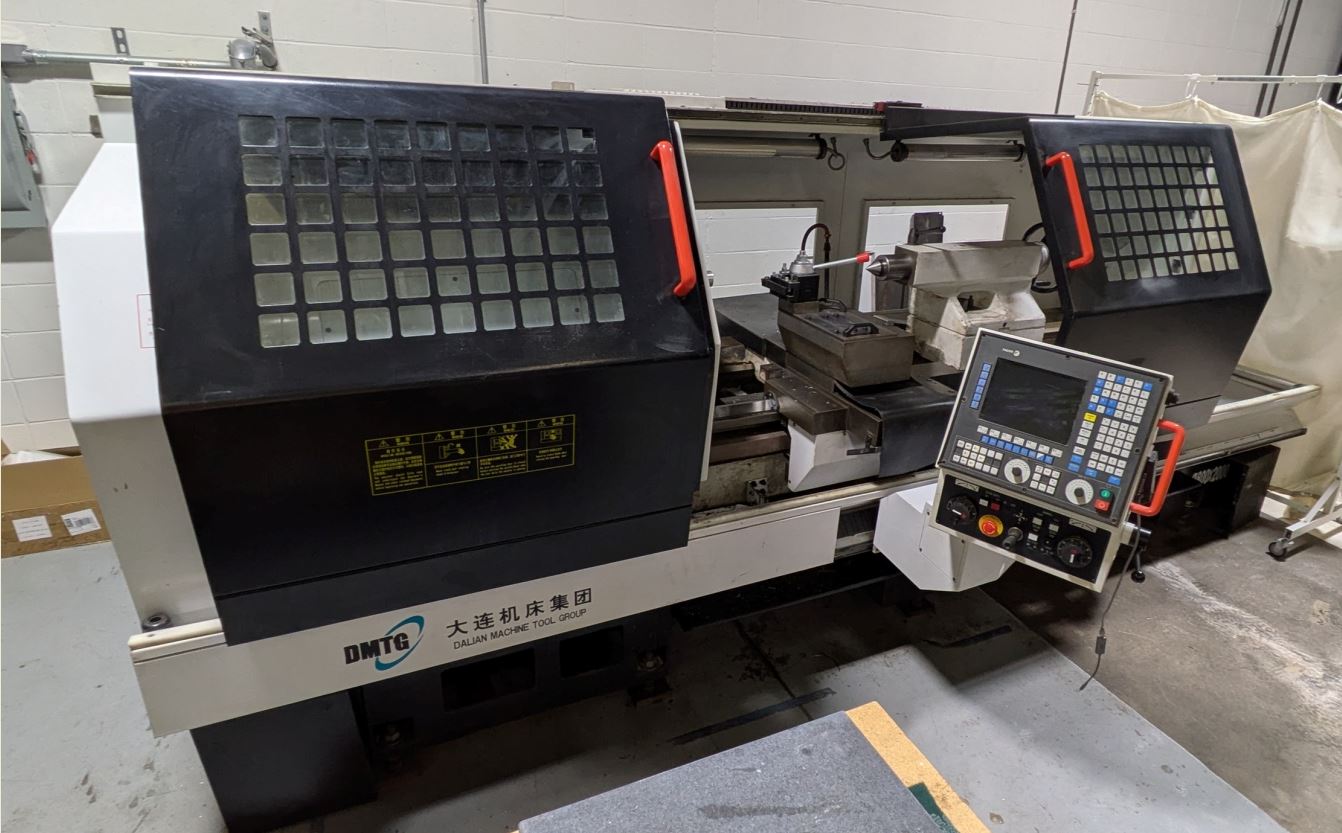

DMTG 31 x 79 CKE6180Z Flat Bed CNC Lathe, New 2011.

Specifications:

Swing over bed........................................ 31.5" (800mm)

Max. length of workpiece..................... 78.7" (2000mm)

Swing over cross slide............................. 19.3" (490mm)

X-travel (approx.)....................................... 18" (457mm)

Z-travel.................................................. 70.5" (1790mm)

Spindle nose.............................................................. C11

Spindle bore............................................... 3.9" (100mm)

Spindle speeds (inf variable in 4 steps)... 40 – 1,000 rpm

Spindle motor........................................................... 15 Hp

Rapid traverse (X/Z).................... 157/315 ipm (4/8 mpm)

Turret tool changing time.......................................... 3 sec.

Tailstock quill travel.................................... 9.4" (240mm)

Tailstock quill taper................................................... #5MT

Dimensions (approx.)……............. 178"W x 80"D x 75"H

Weight (approx.)……………………………........ 13,420 lb.

Equipped with:

Fagor 8055TC CNC control with RS232

16" 3-Jaw chuck

20" Face plate

Shars model 444 tool post (Aloris-style)

6-Position vertical turret (currently off machine)

Tail stock

Steady Rest

Coolant System

Manual
