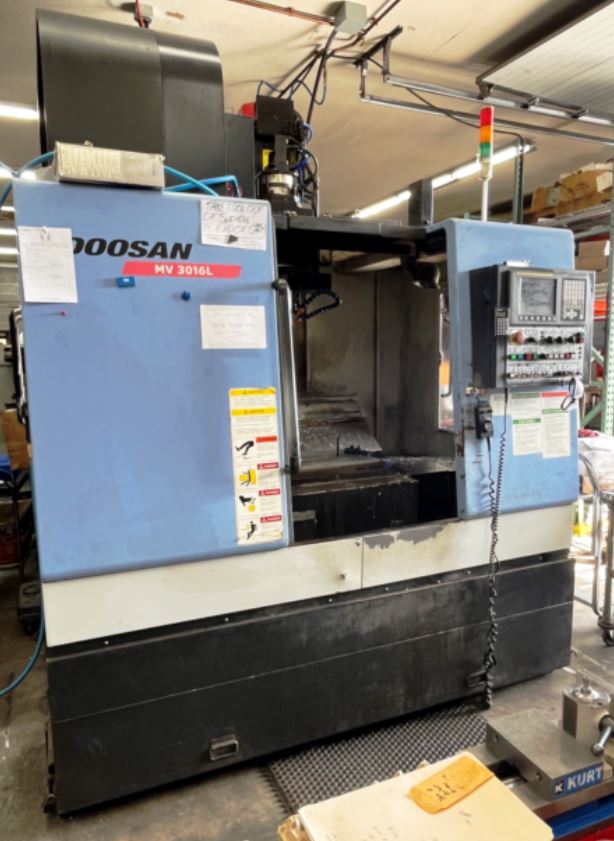

Doosan MV3016L CNC Vertical Machining Center, New 2007

Specifications:

X-axis………………………….…….…………. 30.2"

Y-axis………………………….…….…….....… 17.1"

Z-axis………………………….…….………….. 20.1"

Spindle nose to table………….…….….. 5.9" – 24.25"

Table size……………………….…...….….. 17" x 36"

Max. weight on table…………….………….. 1,300 lb.

Spindle taper……………………………...…. CAT-40

Max. spindle speed………………………... 8,000 rpm

Max. feed rates……………………………… 590 ipm

Rapid traverse rate…………………….…… 1417 ipm

Max. adj. tool diam…………………….…..……. 3.65"

Max. tool length……………………….………… 11.8"

Max. tool weight……………………….…..…. 17.6 lb.

Tool change time……………………….…...… 1.3 sec.

Spindle motor……………………..…………… 20 Hp

Electrics…………………..… 3/50-60/220/34.31 KVA

Dimensiond (approx.)…....… 74"W X 96"D X 108"H

Weight (approx.)…………………………… 11,023 lb.

Equipped with:

Fanuc 0i-MC 3-axis CNC control w/ remote MPG

30-Station side-mount ATC

Rigid tapping

Slide-out chip pan

Coolant system

VISE AND FIXTURE IN PHOTOS ARE NOT INCLUDED
