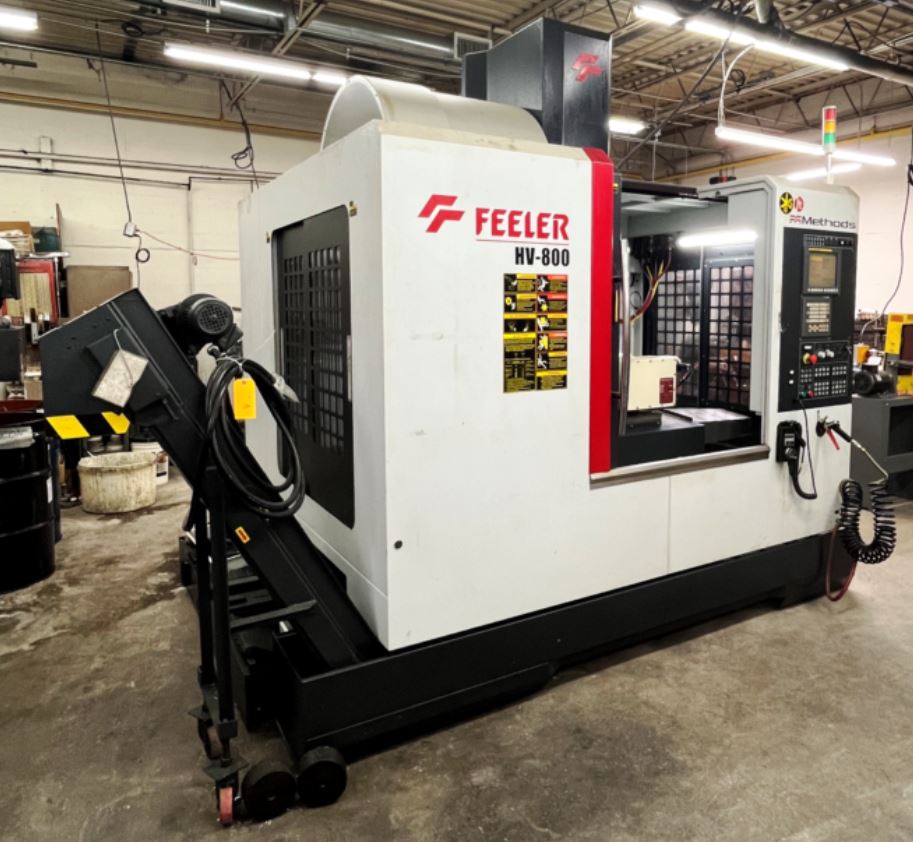

Feeler HV-800 CNC Vertical Machining Center, New 2013

Specifications:

Table size……………………………. 20.5" x 37.4"

X-axis travel………………………………....... 31.5"

Y-axis travel………………………………...… 20.5"

Z-axis travel……………………………….….. 19.9"

Spindle nose to table…………………..... 5.1" – 25"

Table center to column…………........ 11.8" – 32.2"

Table surface to floor……………………….…. 37"

Max. load on table………………………… 1,100 lb.

Spindle taper……………………..… BT-40 Big-Plus

Spindle speed (max.)………………….… 15,000 rpm

Rapid traverse (X&Y, Z)………….. 2,362, 1,181 ipm

Max. tool weight……………………….....…. 17.6 lb.

Max. tool length……………………………….. 11.8"

Max. tool diam………………………………….. 3.1"

Max. tool diam. (no adj. tool)…………………… 5.9"

Tool to tool change time…………………….. 1.9 sec.

Spindle motor…………………… 30 Hp direct drive

Electrics……………………….…. 3/60/220/25 KVA

Floor space (approx.)……………… 152"W x 86"D

Height (max.)……………………………..….. 118.1"

Weight (approx.)…………………………. 15,100 lb.

Equipped with:

Fanuc 0i-MD CNC 5-axis control

  with RS232 & RJ45 ports & remote MPG

Tsudakoma TN-161 2-axis tilting rotary table

  with Northfield 5C collet chuck

30 Station arm-type automatic tool changer

Twin chip augers and chip conveyor

Chip wash-down system

Spindle oil chiller

Coolant pan and pump on floor

Manual
