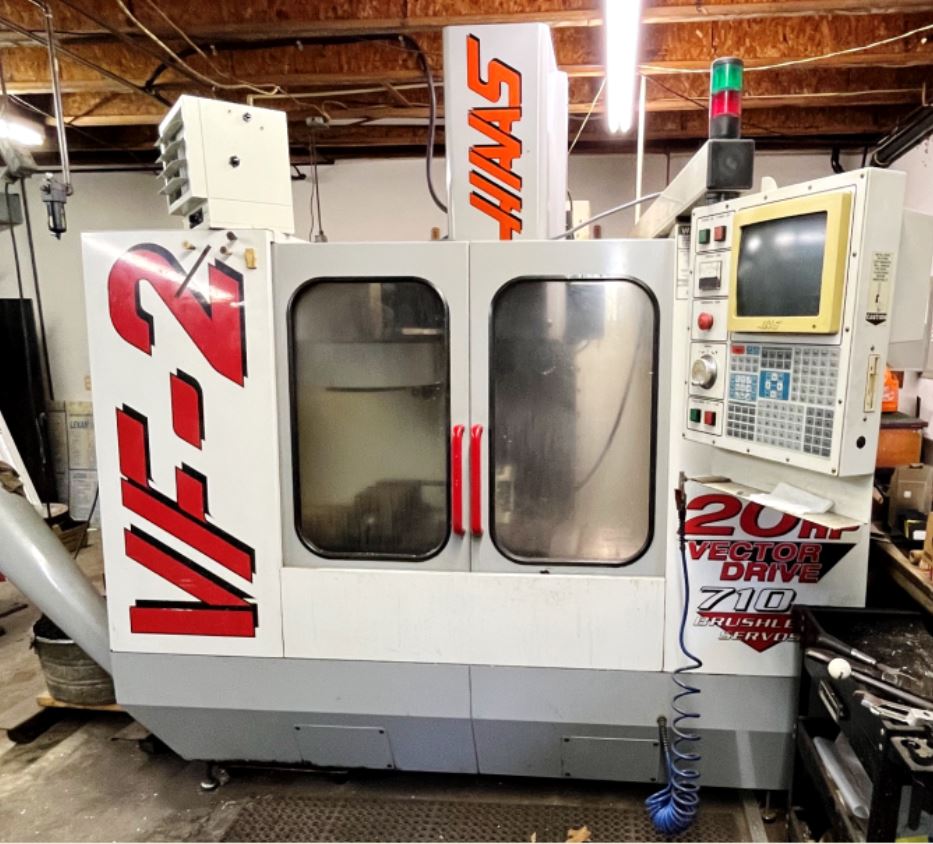

Haas VF-2 CNC Vertical Machining Center

Specifications:

Longitudinal travel (X axis)………………....….… 30"

Cross travel (Y axis)…………………….…..….… 16"

Vertical travel (Z axis)………………………….…. 20"

Table working surface………………..…...… 14" x 36"

Min/max distance spindle to table……..……... 4" - 24"

Max. table load……………………………..... 3,000 lb.

Rapid traverse………………………………... 710 ipm

Spindle taper……………………………….…... CAT-40

Max. spindle speed…………………...……... 7,500 rpm

Spindle motor…………………………….…….… 20 Hp

Electrics……………………………. 3ph/60hz/208-230v

Dimensions………………....… 88"W x 93"D x 105"H

Weight (approx.)………………………..…….. 8,000 lb.

Equipped with:

Haas CNC control w/ RS232 port & floppy drive

Haas HA5C 4th axis indexer

20-Station, carousel type ATC

Programmable coolant nozzle

Rigid tapping

Chip auger

Brushless axis motors

Coolant system

*NOTE, VISE IN PHOTOGRAPH IS NOT INCLUDED*
