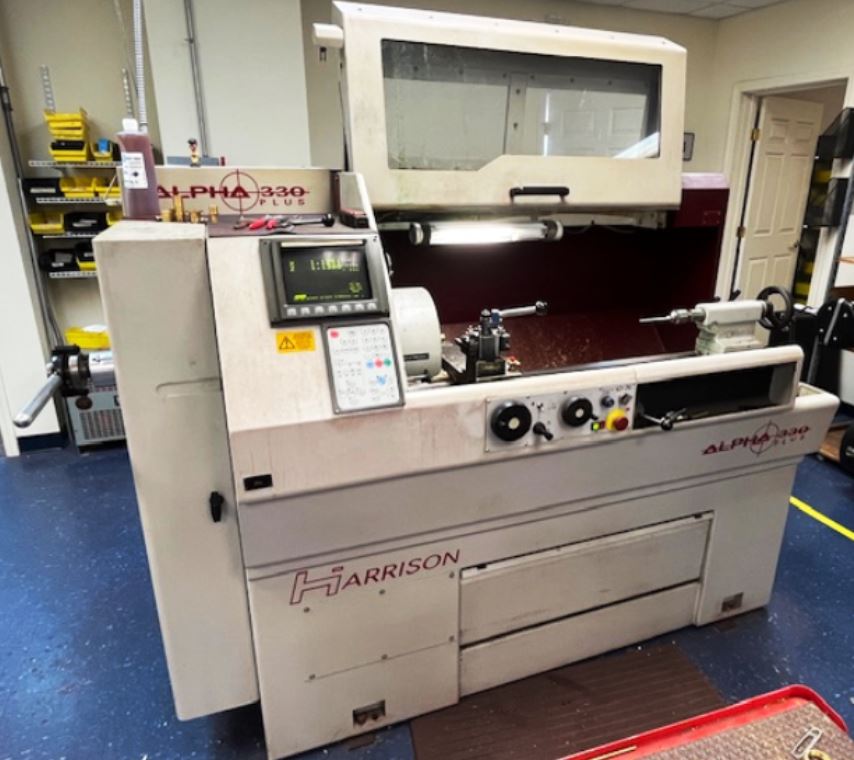

Harrison Alpha 330 Plus CNC Flat-bed Lathe, New 1997

Specifications:

Swing over bed………………………….....…….. 13"

Distance between centers……………………...... 40"

Spindle bore…………………………………….. 1.65"

Spindle nose……………………………………. D1-4"

Spindle speeds (inf variable-2 ranges).....0 - 3,500 rpm

Metric threads (all pitches up to)……………... 14 mm

Imperial threads (all pitches down to)……….….. 2 tpi

Module threads (all pitches up to)……….... 3.5 MOD

Diametral threads (all pitches down to)……….... 8 DP

Cross slide travel……………………………….... 7.09"

Feed rates (12)……………………..... 0.001 - 0.024 ipr

Rapid traverse rate (cross = ½)…………….... 118 ipm

Tailstock quill stroke……………………………… 4.3"

Tailstock center taper……………………….… #3 M.T.

Spindle motor (30 min./cont.)………………...….. 10 Hp

Electrics…………………………………….… 3/60/415v

Dimensions (approx.).…………... 81"L x 48"D x 61"H

Weight (approx.)……………………………..… 2,650 lb.

Equipped with:

GE Fanuc 21-TB CNC control with RS232

Electronic handwheels

Inch/Metric threading

4" 3-Jaw chuck mounted on 5C collet

Royal 5C lever collet closer

Aloris BX toolpost with miscellaneous holders

Tailstock

Chuck guard

Pull-down work guard

Coolant system

Marcus 240-400 volt step-up transformer

Work light

Manual
