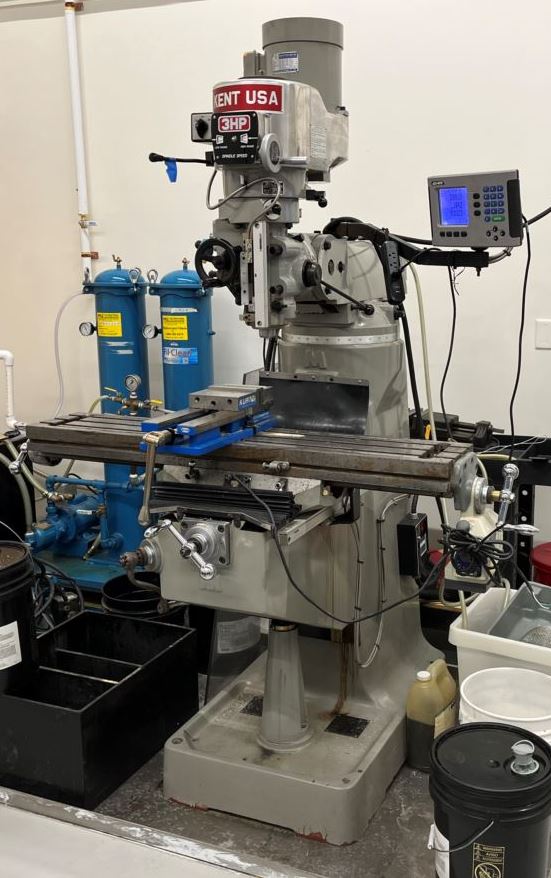

Kent USA KTM 3VS Vertical Mill, New 2018.


Specifications:

Table size……………………………………………………………..... 9" x 49"

Longitudinal table travel……………………………………………….…… 36"

Saddle cross travel…………………………………………………….…..… 12"

Quill travel……………………………………………………..…….……….. 5"

Knee travel…………………………………………………………...……... 15"

Ram travel………………………………………………………….……... 14.5"

Max. table load………………………………………………………….. 750 lb.

Throat distance (min/max)…………………………………...……..…. 5"/19.5"

Table to spindle nose (min/max)………………………………….. 3.25"/18.25"

Head tilt & rotate………………………………………………...……… +/- 45˚

Spindle taper…………………………………………………………………. R8

Maximum collet capacity…………………………………………………... 3/4"

Spindle speeds (variable in 2 ranges)…………….... 60 - 500 & 500 - 4200 rpm

Spindle power feeds (3)………………..……………. 0.0015 - 0.003 - 0.006 ipr

Spindle motor………………………………………….……. 3Hp/3/60/220/440

Dimensions (approx.)……………………………………. 86"W x 67"D x 84"H

Weight (approx.)………………………………………………………. 2,300 lb.


Equipped with:

3-Axis DRO

Longitudinal table feed

Way covers

1-Shot lube

Vise

Misc. collets & clamps

Drill chuck

DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.



Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.

Email Us to Request a Quote.
