Kerrey 17" x 55" Gap Bed Engine Lathe

New 1981

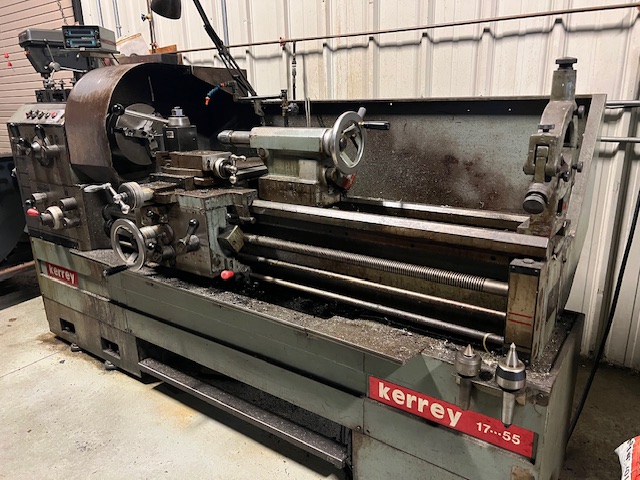

Kerrey 17" x 55" Gap Bed Engine Lathe

Specifications:

Swing over bed…………………………........….... 17"

Swing in gap…………………………….............. 24.8"

Distance between centers………….............………55"

Spindle bore………………………..………….. 2-1/8"

Spindle nose (camlock)………………..…….… D1-6"

Spindle speed range (12)…………..…. 31 - 1,520 rpm

Longitudinal feed range (32)….…. 0.0014 - 0.0212 ipr

Cross feed range (32)……….......... 0.0010 - 0.0144 ipr

Inch threads (32)………………………....... 4 to 56 tpi

Metric threads (21)………………….....… 0.5 to 7 mm

Tailstock spindle taper……………….…………. #4MT

Tailstock spindle travel………………………..….… 6"

Spindle motor……………………........ 7.5 Hp/220/440

Dimensions (approx.)………...... 103" X 40"D X 62"H

Weight (approx.)………………………............ 4,020 lb.



Equipped with:

Inch/metric threading

10" 3-Jaw chuck

5C Lever collet closer

AcuRite 2-axis DRO

Steady rest

Aloris quick change toolpost with miscellaneous holders

Foot brake

Threading dial

Tail stock

Coolant system

Chuck guard

Rear splash guard

Work light
