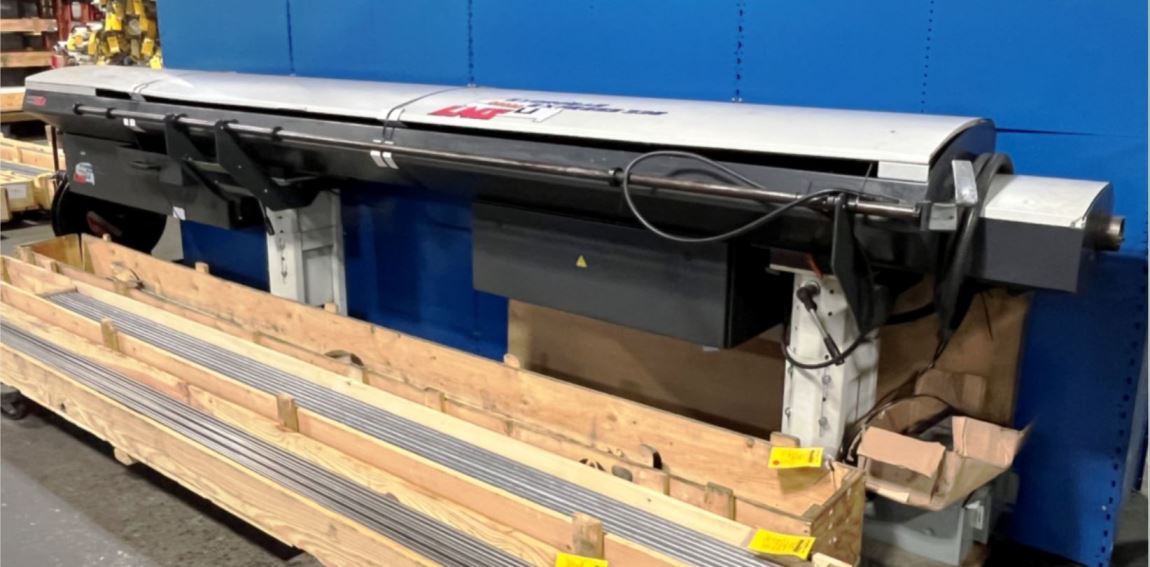

LNS 332 Hydrobar Express
Magazine-type Bar Feed, New 2010.
Specifications:Bar length capacity.……………….…………….... 12'Bar diameter capacity……... 0.125″ – 1.250"
(32mm)Bar feed Z-axis retract…………………………… 20″Min. bar length capacity……………………….. 27.6″Hydraulic oil……………………………… 21 US gal.Loading cycle………………………….… 35 – 40 sec.Min. remnant length……………………………….. 4"Max. remnant length………………………….. 15.75"Max. feed rate…………………………….... 4,000 ipmPneumatic pressure…………………………….. 74 psiMax. pushing force………………………….…... 124 lb.Air consumption…………………........ 10 l/loading cycleRack capacity………………………………... 11.6″ wideDimensions (approx.)…… 197"L x 24"D x
69"H (max.)Weight (approx.)…………….……………..…... 1,540 lb.
|
DESCRIPTIONS ARE CORRECT TO THE
BEST
KNOWLEDGE OF
THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK
IMPORTANT CHARACTERISTICS.
Please email us for
a
complete quotation. Include in the
message your name, company name, location, and phone number.We do not send quotations without this information.
