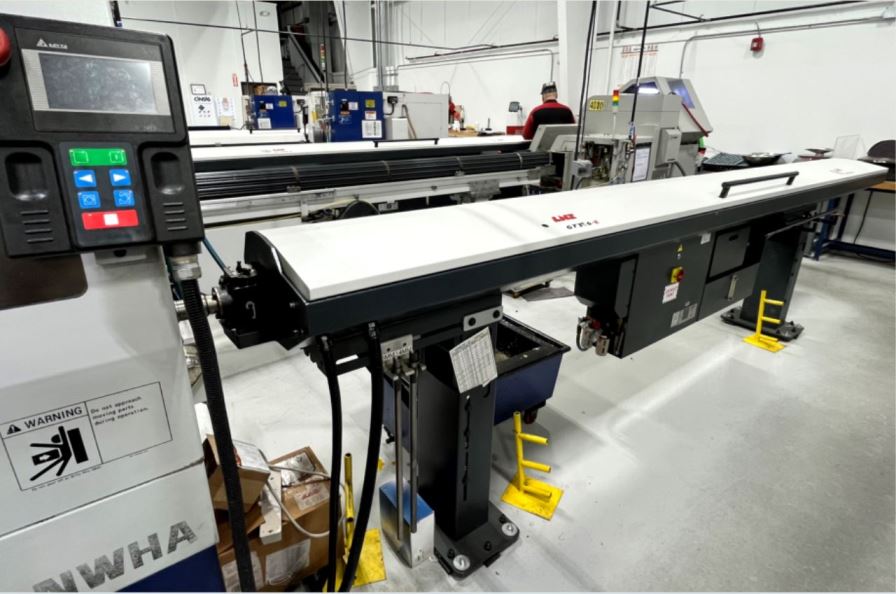

LNS GT326-E Magazine-type Bar Feed, New 2019.

Specifications:

Bar length capacity.……………….………….…..... 12'

Bar diameter capacity…... 0.125″ – 0.787" (3 – 20 mm)

Set-up time (partial/full)……………………...… 2/8 min.

Air pressure…………………………..…... 90 - 100 psi

Rack capacity…………………………….... 10.6″ wide

Hydraulic oil (ISO 100)…………………….. 7.4 US gal.

Dimensions (approx.)…...…..… 177"L x 21"D x 48"H

Weight (approx.)…………….……………….... 1,400 lb.

Equipped with:

Hydrodynamic bar support

Remote control pendant

Remnant retraction system

Can be set up for right or left hand feed

Currently used with a Hanwha ML20 Swiss (RH feed)

 Adapters & Interfaces for other brands available from LNS
