Mori Seiki SL-150 MC CNC Lathe, New 1999

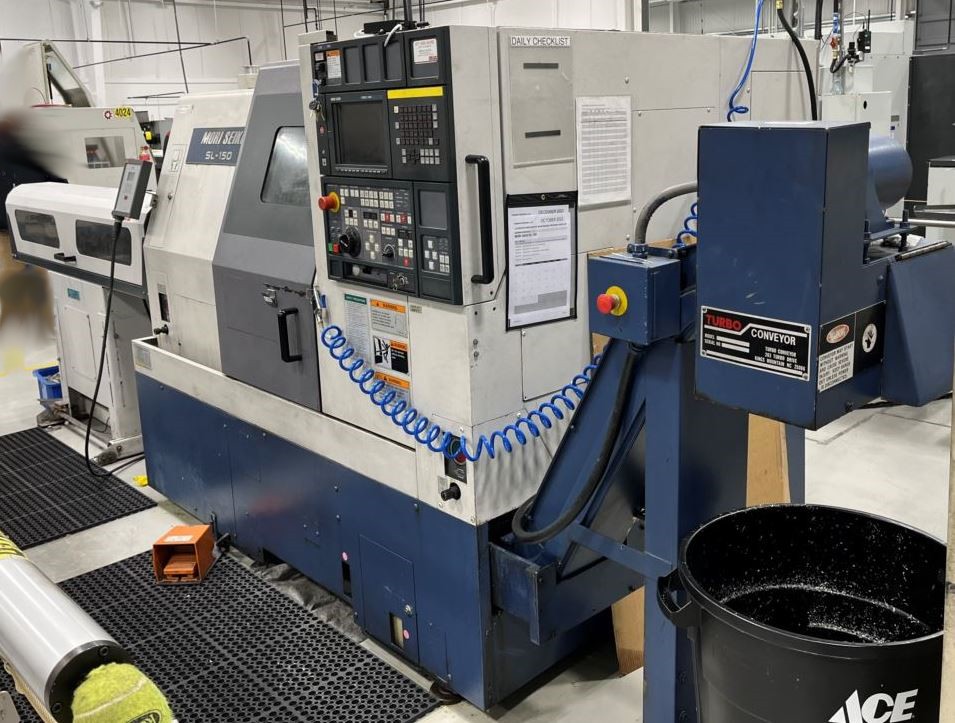

Mori Seiki SL-150 MC CNC Lathe

Live tool shown in this video is NOT included with this machine.



Specifications:

Swing over bed.............................................................. 24.4"

Swing over cross slide................................................... 17.9"

Distance between centers........................................... 22.0"

Max. turning diameter................................................. 16.9"

Standard turning diameter........................................... 6.7"

Max. turning length..................................................... 20.4"

Bar capacity..................................................................... 1.7"

X-axis travel.................................................................... 9.1"

Z-axis travel................................................................. 20.5"

Spindle speed range........................................ 50-5,000 rpm

Spindle nose........................................................... JIS A2-5

Spindle hole.................................................................... 2.2"

Spindle bearing inner diameter..................................... 3.5"

Min. Spindle indexing angle (least incr.)…………... 0.001°

Number of turret tool stations............ 12 (rotary tools:12)

Turret indexing time.................................................. 0.2 sec.

Max. rotary tool spindle speed………………. 3,000 rpm

Shank height for square tool......................................... 3/4"

Max. shank diameter for boring bar........................ 1-1/4"

Tailstock travel.............................................................. 20.3"

Tailstock quill travel....................................................... 4.7"

Tailstock quill taper....................................................... MT4

Tailstock spindle diameter............................................ 3.3"

Rapid traverse rate (X/Z).......................... 708.7/944.9 ipm

Jog feedrate (X&Z)................................................. 0-50 ipm

Spindle drive motor............................................... 10/7.5 Hp

Feed motors (X/Z)............................................... 3.8/2.8 Hp

Electrical power supply........................................... 20.7 kva

Coolant tank capacity............................................... 54.1 gal

Dimensions (approx.)............. 88.8"W x 66.1"D x 71.6"H

Weight (approx.)...................................................... 8,580 lb.



Equipped with:

Mori Seiki MSC-501 CNC control

Full C-axis

3J Collet chuck

Tailstock

LNS QL Servo 80 6’ bar feed

Chip conveyor


DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.

Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.


email for a quote.
