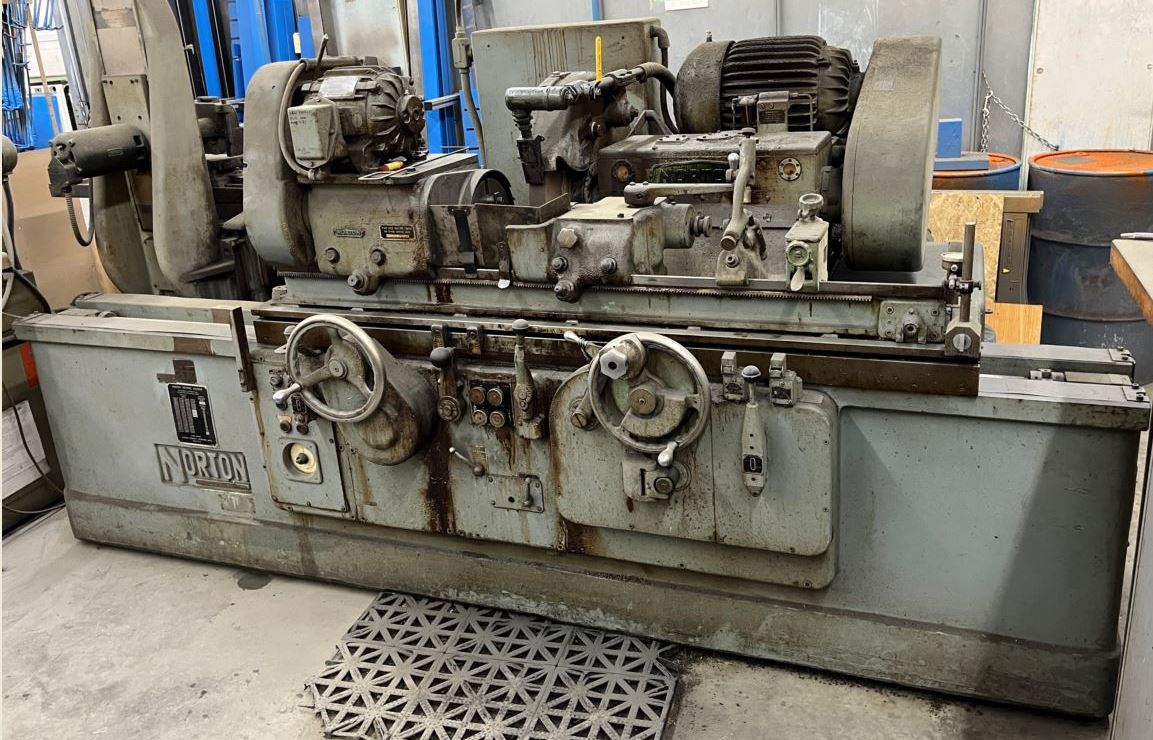

Norton 10" x 36" CTU Universal Cylindrical Grinder.

Specifications:

Max. diam. ground……………..…………....… 10.5"

Distance between centers…………………...… 36.5"

Grinding wheel size (standard)…….... 30" x 5" x 12"

Grinding wheel speed………………...…… 1,800 rpm

Table speeds (infinitely variable)……..… 2 – 240 ipm

Table swivel…………………………………......... 3.5°

Work head speeds (4)………………… 104 – 408 rpm

Work head center taper………………….... #10 Jarno

Foot stock center taper…………………….. #10 Jarno

Grinding wheel motor…………………... 15Hp/3/60/550

Work head motor………………………… 1Hp/3/60/550

Dimensions (approx.)………...… 122"L x 82"D x 66"H

Weight (approx.)………………………….…... 10,000 lb.

Equipped with:

Automatic grinding cycle

Automatic plunge grinding cycle

Cycle timer

Motor-driven work head

Foot stock

Steady rest

Back rest
