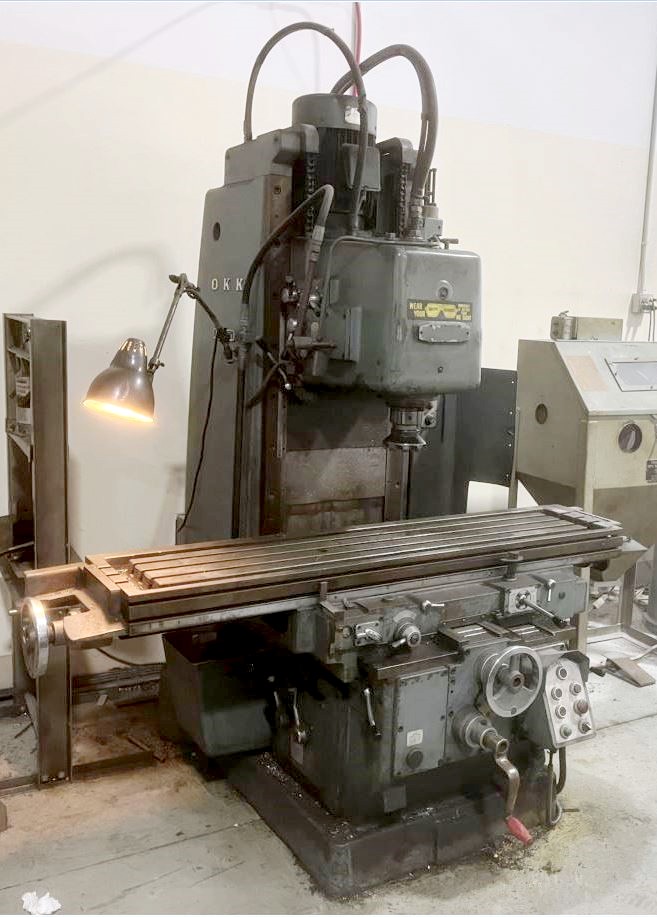

OKK MH-3VII Bed Type Vertical Milling Machine

OKK MH-3VII Bed Type Vertical Milling Machine

Specifications:

Table working surface......................................... 65" x 15"

Max. table longitudinal travel................................. 36.25"

Max. saddle cross travel.......................................... 13.75"

Table long. & cross feeds (12)................... 0.4375 - 69 ipm

Head vertical feeds (12).......................... 0.175 – 27.6 ipm

Power long. & cross rapid traverse (vert)..... 125 (50) ipm

Max. vertical travel of head...................................... 17.75"

Spindle nose to table.......................................... 4" - 21.75"

Spindle center to column......................................... 16.125"

Spindle taper.......................................................... #50 N.S.

Spindle speeds (12)....................................... 45 - 1600 rpm

Spindle motor........................................ 10 Hp/3/60/230/460

Dimension (approx.)....................... 122"W x 72"D x 96"H

Weight (approx.)..................................................... 9,250 lb.

Equipped with:

Lubrication system

Coolant system

Backlash eliminator


DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.

Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.


email for a quote.
