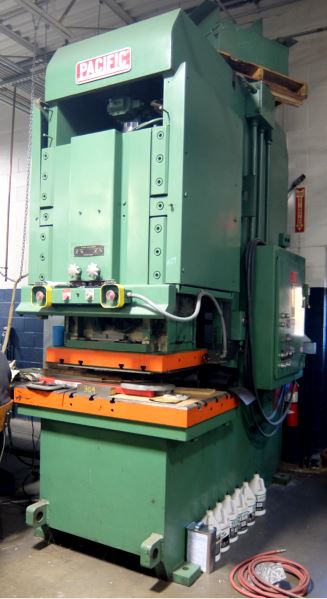

Pacific 150 Ton Press Former 150PF-OBS, New 1980

Specifications:

Capacity…………………………………………… 150 tons

Stroke (max.)…………………………………………..... 10"

Bed size (FB x LR)……………………………….. 30" x 50"

Upper platen (FB x LR)…………………………... 24" x 34"

Open height…………………………………………. 17-1/4"

Shut height………………………………………........ 7-1/4"

Throat depth………………………………………… 16-1/2"

Distance between side frames…………………………… 31"

Die weight (max.)………………………………….. 1,500 lb.

Main pump motor…………………………………….. 30 Hp

Electrics……………………………..... 1Ph/60/460v/42 FLA

Dimensions (approx.)……………… 59"W x 100"D x 143"H

Weight (approx.)………………………………….. 35,000 lb.

Equipped with:

Adjustable stroke

Dual Palm buttons

Tee-slotted bed and upper platen

Run modes;

  Inch

  Single stroke – manual return

  Single stroke – auto return

Separate continuous run mode switch

Lincoln "Centro-Matic" lube system
