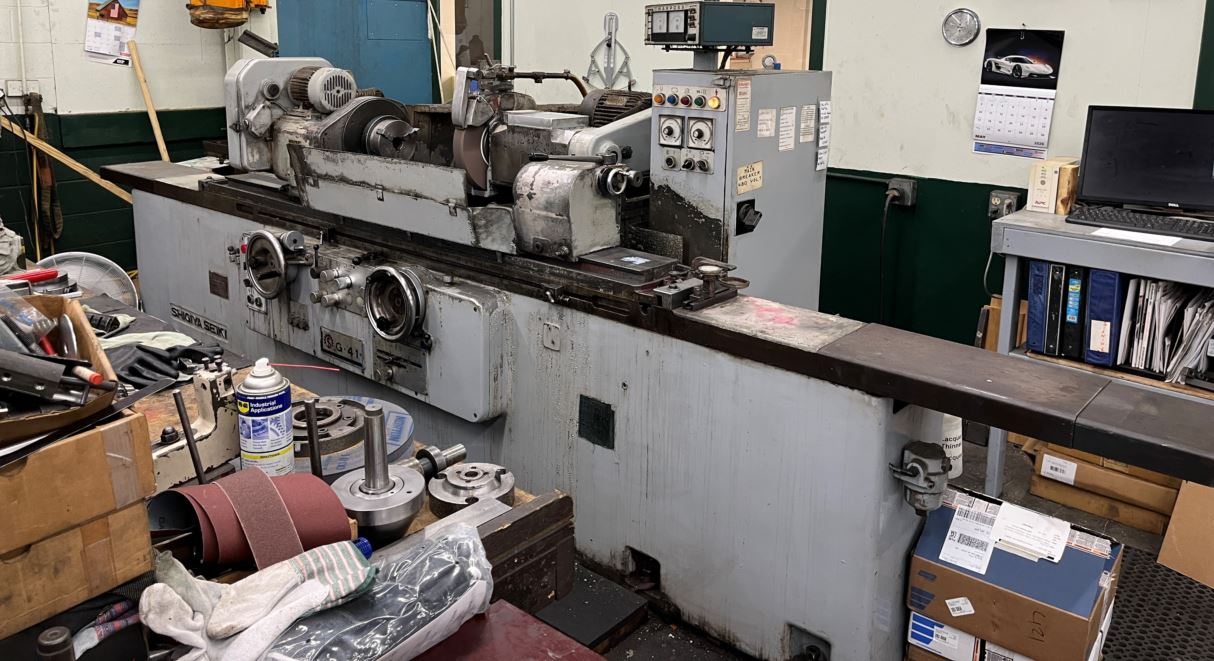

Specifications:

Swing over table................................................ 16.1"

Distance between centers.............…………..… 59"

Max. grinding diameter……………………..… 14"

Wheel head;

  Swivel angle……………………………... each 30°

  Wheel size…………………….... 14" x 1"-2" x 5"

  Spindle speed……………………... 1660/1880 rpm

  Manual feed stroke……………………….… 8.5"

  Rapid traverse………………..………. about 1.5"

  1 Revolution of hand wheel……..…….....… 0.04"

  Fine feed finger-tip…………………….... 0.0001"

Automatic infeed;

  Max. auto. infeed stroke………….… about 0.03"

  Auto. continuous infeed speed……….. to 0.1 ipm

Work head;

  Swiveling range (total)………………..…… 120°

  Spindle speed (9 steps)………….. 13 – 252 rpm

  Center taper……………………..…..…. #4 MT

Tail stock taper……………….……….... #4 MT

Grinding wheel motor…………………..… 5 Hp

Hydraulic motor………………………...... 1 Hp

Work head motor…………………,….... 1/2 Hp

Weight (approx.)…………………....…. 7,800 lb.

Equipped with:

Motor-driven work head

6" & 8" 3-Jaw chucks

ID grinding attachment

Plunge grinding

Spark-out

Tail stock

(2) Back rests

(2) Wheel mounts

Coolant system

Splash guard
