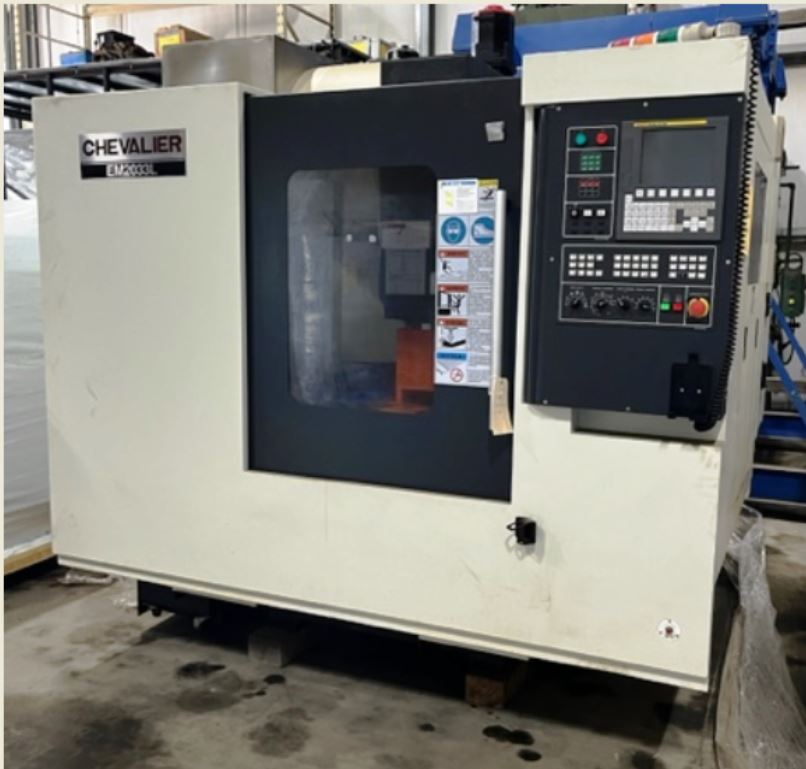

Specifications:

Table size……………………………………… 20.1" x 39.4"

Max. table load…………………………………….. 1,100 lb.

X-axis travel…………………………………………… 33.5"

Y-axis travel…………………………………………… 20.9"

Z-axis travel…………………………………………… 20.1"

Spindle nose to table……………………………... 5.9" – 26"

Spindle center to Z-axis covers………………………….. 23"

Spindle taper……………………………... CAT-40 Big-Plus

Max. spindle speed……………………………… 10,000 rpm

Spindle motor………………………………………… 20 Hp

Cutting feed rates (X,Y,Z)………………….. 39.3 – 394 ipm

Rapid traverse (X&Y/Z)…………………….. 1,417/945 ipm

Max. tool diam. w/ adjacent tool………………….……. 3.1"

Max. tool diam. w/o adjacent tool………………….…. 4.72"

Max. tool length…………………………………….... 11.81"

Max. tool weight…………………………………….... 15 lb.

Electrics…………………………………... 3/60/230/20KVA

Air required……………………………..... 85 psi, 200 L/min

Coolant capacity……………………………………... 63 gal.

Floor space (approx.)………………... 83"L x 93"W x 102"H

Weight (approx.)…………………………………. 12,760 lb.

Equipped with:

Fanuc 0i-MF CNC control with Conversational programming

  Ethernet & USB ports & Flash memory card slot

24 Station arm-type automatic tool changer

ATS 650X 40,000 RPM CAT-40 air spindle

Misc. ER16 collets

Rigid tapping

Helical interpolation

Air purge spindle

Chip conveyor

Filtermist FX900 mist collector

Coolant system

 *LOW HOURS*
