Ganesh VMC-4020 CNC Vertical Machining Center, New 2012.

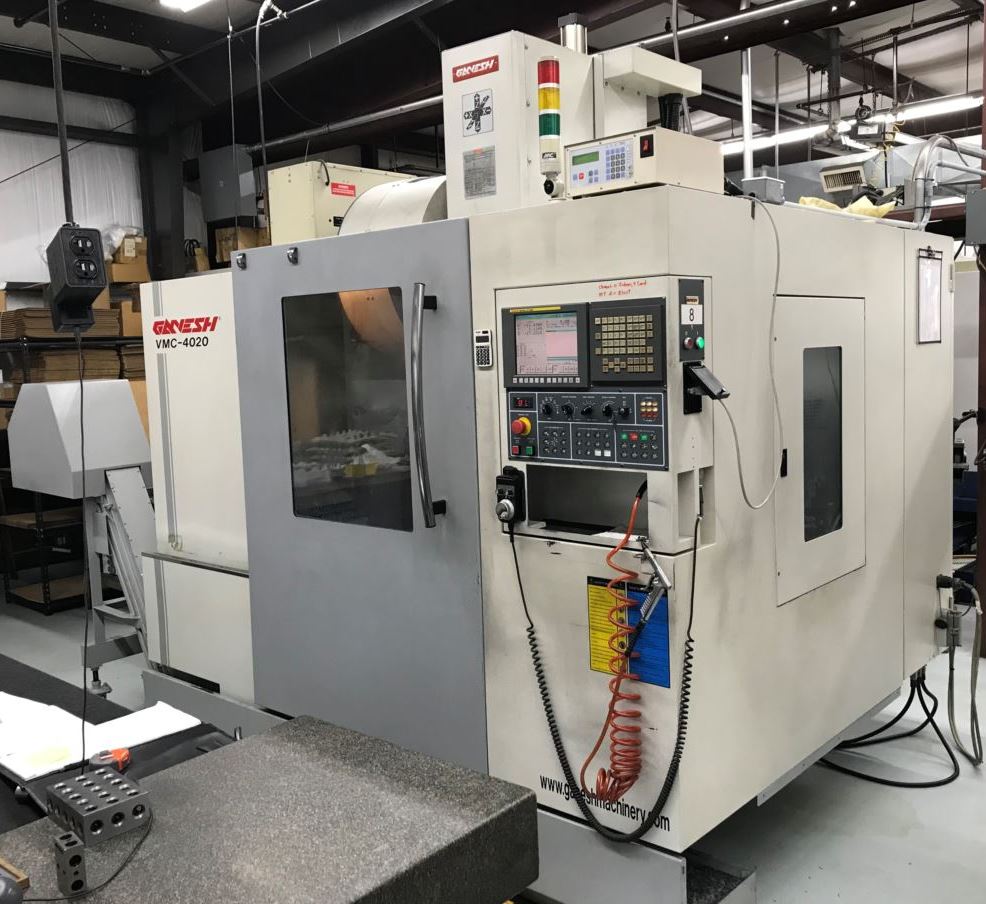

Ganesh VMC-4020 CNC Vertical Machining Center

INDEX FIXTURE AND CONTROLLER SHOWN IN PHOTOS AND VIDEO ARE NOT INCLUDED.

Specifications:

Table working surface……………………..………. 19.7" x 44"

X-axis travel……………………………………………… 40.1"

Y-axis travel……………………………………………… 20.5"

Z-axis travel………………………………………………. 21.3"

Distance spindle nose to table (min/max)……………... 4.7"/26"

Distance spindle center to column…………………….….. 22.8"

Spindle taper…………………………………………... CAT-40

Spindle speed (max)……………………………..… 10,000 rpm

Cutting feed rates………………………………. 0.04 – 394 ipm

Rapid traverse rate……………………………...……... 787 ipm

Max. tool weight…………………………………...…... 17.6 lb.

Tool change time (next tool)……………………………... 6 sec.

Spindle motor……………………………………………. 15 Hp

Dimensions (approx.)………………….. 85"W x 83"D x 119"H

Weight (approx.)…………………………………….. 11,660 lb.



Equipped with:

Fanuc 0i-MC CNC control with remote MPG & RS232

24-Station side-mount automatic tool changer

Rigid tapping

Chip conveyor

Spindle oil chiller

NOTE: INDEX FIXTURE AND CONTROLLER SHOWN IN PHOTOS AND VIDEO ARE NOT INCLUDED.

DESCRIPTIONS ARE CORRECT TO THE BEST KNOWLEDGE OF THE SELLER BUT ARE NOT GUARANTEED.
BUYERS ARE ENCOURAGED TO CHECK IMPORTANT CHARACTERISTICS.



Please email us for a complete quotation. Include in the message your name, company name, location, and phone number.
We do not send quotations without this information.

Email Us to Request a Quote.
